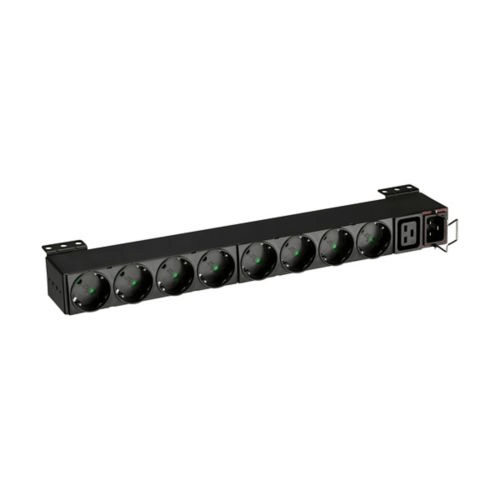

EATON EFLX8D FlexPDU 1U C20 input 4kW 16A 200-240V, Outlets: (1) C19/(8) SHUKO, DIN

Description

EFLX8D is a versatile and powerful rack PDU in 1U format, designed to flexibly expand the connection options of a single UPS. It has an IEC C20 input (16 A, up to 3.84 kW) and distributes the power to a total of nine output ports: one C19 and eight contact sockets. Horizontal installation in a 19″ rack is standard, although wall mounting or mounting on the rear of the UPS is also possible. With a weight of only around 1.6 kg and compact dimensions, the device integrates unobtrusively into existing infrastructure. It operates within a wide temperature range (0 °C to 60 °C) and does not require active communication interfaces – ideal for applications where simple, reliable power distribution is a priority.
