TRIPPLITE PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical

PRODUCT DATASHEET

* Local metered 22.2kW 3 Phase 360-415V input 208-240V output PDU
* Visual meter reports output amps per bank, total kW and input voltage
* IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6-ft. (1.83 m) line cord
* 42 208-240V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves
* 0U Vertical Rackmount with Toolless button-mount installation
* TAA Compliant



Add to Wishlist
SKU: PDU3XMV6G32 Categories: ,

Description

PDU3XMV6G32 Features:

  • 22.2kW 3 phase 360-415V input, 208-240V output Local Metered Power Distribution Unit / PDU

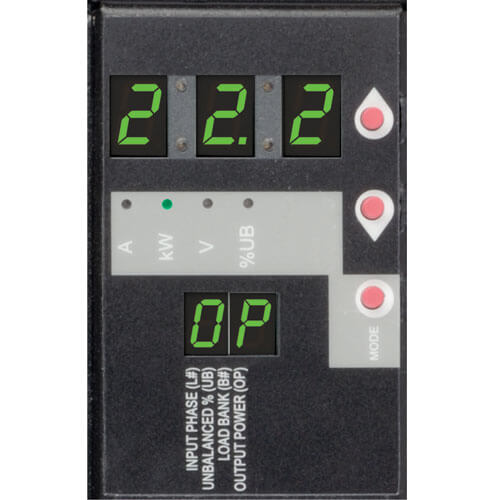

  • Visual display with scroll function enables selection of breakered load banks 1-6 for output current reporting in amps, total kW output and PDU input voltage

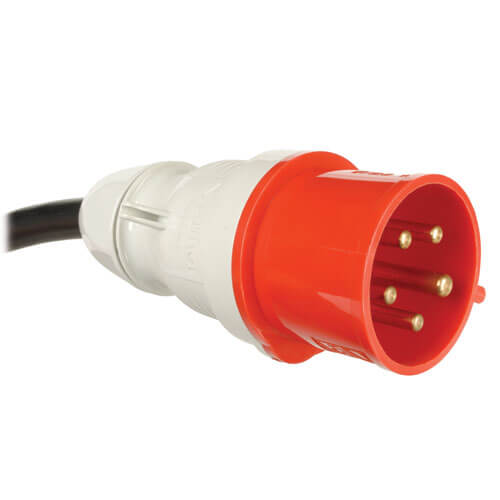

  • Attached IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. / 1.8m line cord

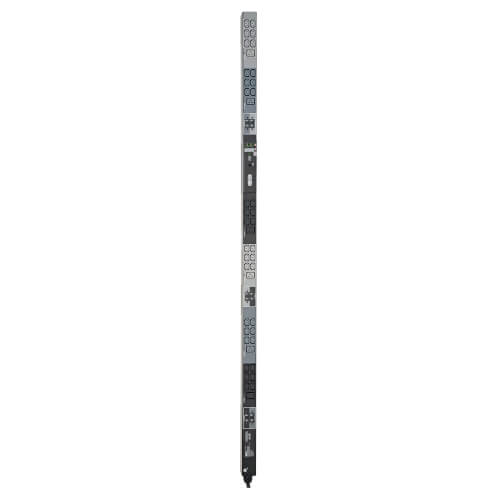

  • 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

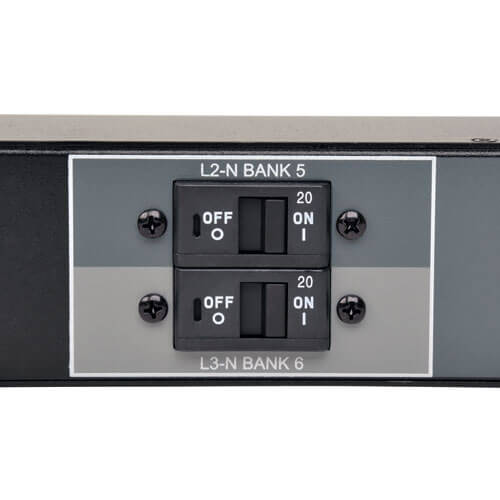

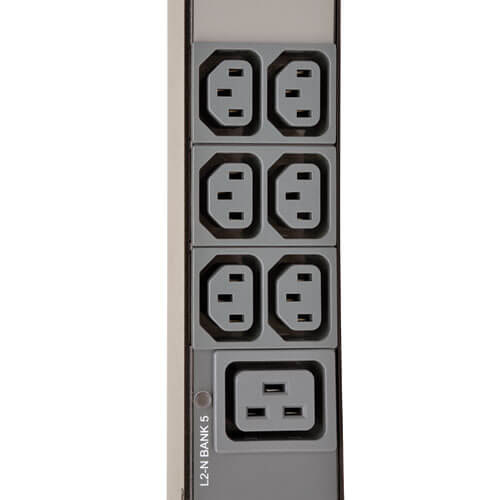

  • 42 total 208-240V outlets (36 C13, 6 C19) arranged in 6 separately breakered single phase output load banks
  • Included cord retention sleeves keep vital network equipment plugged in and continuously powered

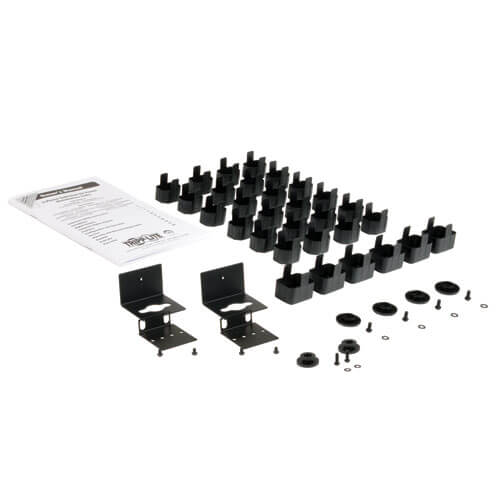

  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Additional information

Weight 9.3 kg
Dimensions 194.49 × 15.01 × 17.50 cm
