Description

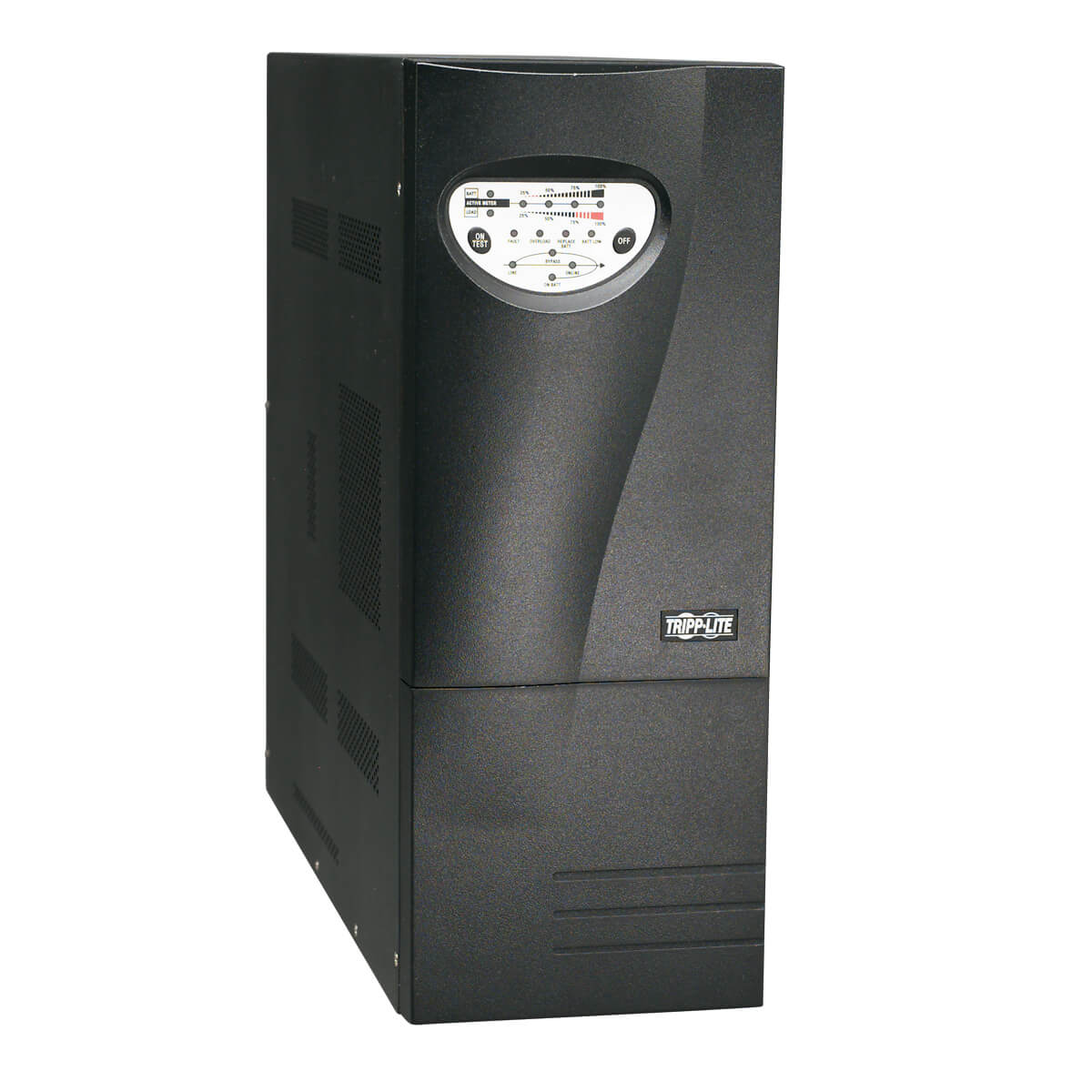

SUINT3000XL on-line, double-conversion UPS protects critical server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Space-saving upright tower format. Large capacity 3000VA/2100W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at selectable 220/230/240V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS types. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 8 C13 outlets. Battery support can be extended through the addition of external battery packs. Includes slot for internal network management card options, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data.
Features:
* True on-line, double conversion UPS provides pure sine wave AC output at all times
* Maintains continuous operation with zero transfer time through blackouts, voltage fluctuations and surges
* Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
* Corrects brownouts and overvoltages from 175-280V at full load. Input voltage range extends to 80-280V at 50% load or less
* 3000VA/2100W power capacity with 8 C13 outlets
* IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
* Standard internal battery set provides 14 min. runtime at half load and 5 min. runtime at full load
* Intelligent battery management system extends battery life
* Expandable runtime with multiple external battery packs
* DB9 serial port for network interface; SNMP compatible
* Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
* Serial port enables data-saving unattended shutdown when used with Tripp Lite’s PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
* Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
* Diagnostic LEDs
* Optional PDUBHV20 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
* 3 C13-to-C14 jumper cables included
